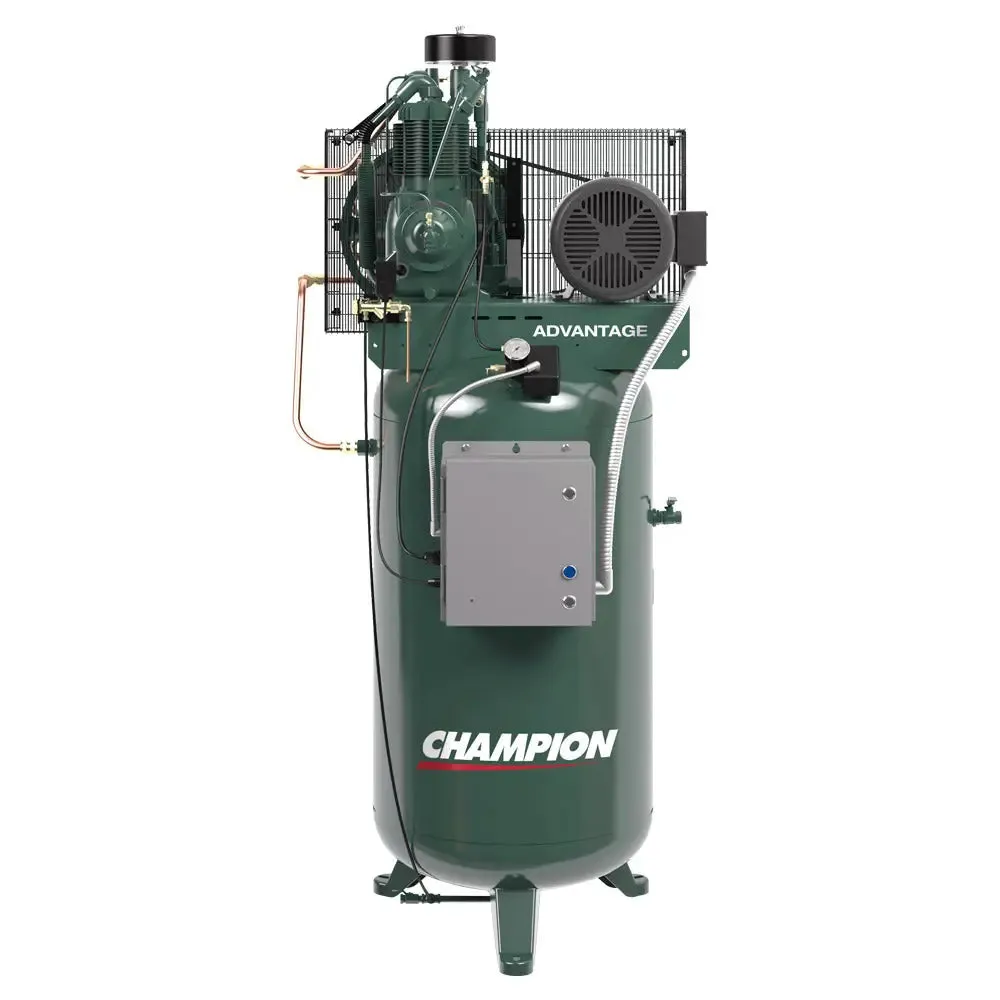

Name: Champion Advantage 5HP Vert Air Compressor (80 Gal)
SKU: 362629

Advantage VR5-8 splash lubricated Simplex, 5HP, 80 Gal, verticle tank, with R15 pump air compressor.

These Advantage units come fully packaged with pre-installed accessories. Our quick-ship program highlights them, so the compressor arrives quickly, ready to install and operate. Each newly assembled unit has a 3-year warranty on the compressor pump.

Features:

Mounted Nema 1 Control Panel
Low Oil Stop Control
Electric - Auto Tank Drain
Air Cooled Aftercooler / Select Models
Dual Control / 15 & 25 HP Models Only
Vibration Isolators
R-Series, two-stage pump
Loadless Starting
Intake Filter
Start/stop pressure switch control
1800 RPM Motor
ASME Coded Receiver
Enclosed Belt Guard

Pump:
Pump Model: R15
Pump RPM: 737

ACFM@175 PSIG: 17.0
Shipping Weight: 590 lbs

ADVA-S01
Tank: Vert
Tank Size: Gallons / Litter: 80 / 303
Phase: 1
Volts: 230
Model Number: VR5-8
Control Panel, Level 1: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: -
Dual Control: -
California Compliant: Yes
Stock Variant: ADVA-S01

ADVA-S126
Tank: Vert
Tank Size: Gallons / Litter: 80 / 303
Phase: 1
Volts: 230
Model Number: VR5-8
Control Panel, Level 2: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant: ADVA-S126

ADVA-S05
Tank: Vert
Tank Size: Gallons / Litter: 80 / 303
Phase: 3
Volts: 208
Model Number: VR5-8
Control Panel, Level 3: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: -
Dual Control: -
California Compliant: Yes
Stock Variant: ADVA-S05

ADVA-S171
Tank: Vert
Tank Size: Gallons / Litter: 80 / 303
Phase: 3
Volts: 208
Model Number: VR5-8
Control Panel, Level 4: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant: ADVA-S171

ADVA-S03
Tank: Vert
Tank Size: Gallons / Litter: 80 / 303
Phase: 3
Volts: 230
Model Number: VR5-8
Control Panel, Level 5: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: -
Dual Control: -
California Compliant: Yes
Stock Variant: ADVA-S03

ADVA-S148
Tank: Vert
Tank Size: Gallons / Litter: 80 / 303
Phase: 3
Volts: 230
Model Number: VR5-8
Control Panel, Level 5: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant: ADVA-S148
